CE / IEC60945 Certified Displays

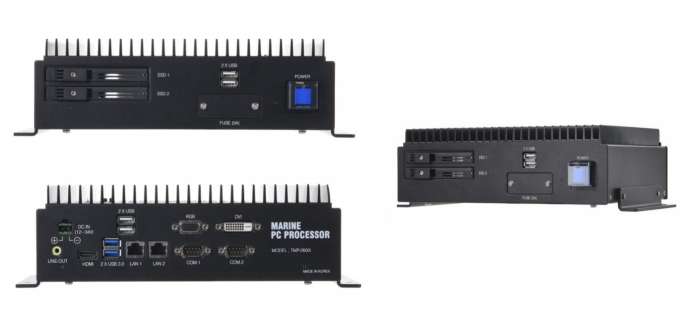

TMP-2600i by Dizen Systems is the marine embedded fanless computer processor. The TMP-2600i Marine PC is CE mark and IEC 60945 certified with compliant for marine applications. The system is produced with Intel Core i5 processors with options for both i3 and i7 variants depending on required processing power. Operating is possible in extended temperature parameters between -30°Cand +70°C. System is fanless and is equipped with solid state for extreme environments. We recommend the product in settings such as industrial, commercial, scientific research, military, transportation, mining and telecommunications markets.

Sealed Rate

IP65

Supported Resolution

640 x 480(VGA) to 1,920 x 1,200(WUXGA)

CPU

Intel Core i5- 6300U 3M Cache, 2.4 GHz

BIOS

AMI/ UEFI BIOS

System Memory

1 X DDR 4 8GB PC-4 19200

Operating System

Windows 10

Set Outline Dimension

184.0 x 250.0 x 82 mm

Weight

1.2kg

RS-232/422/485

1x RS-232/422/485 Selectable by BIOS(COM1)
