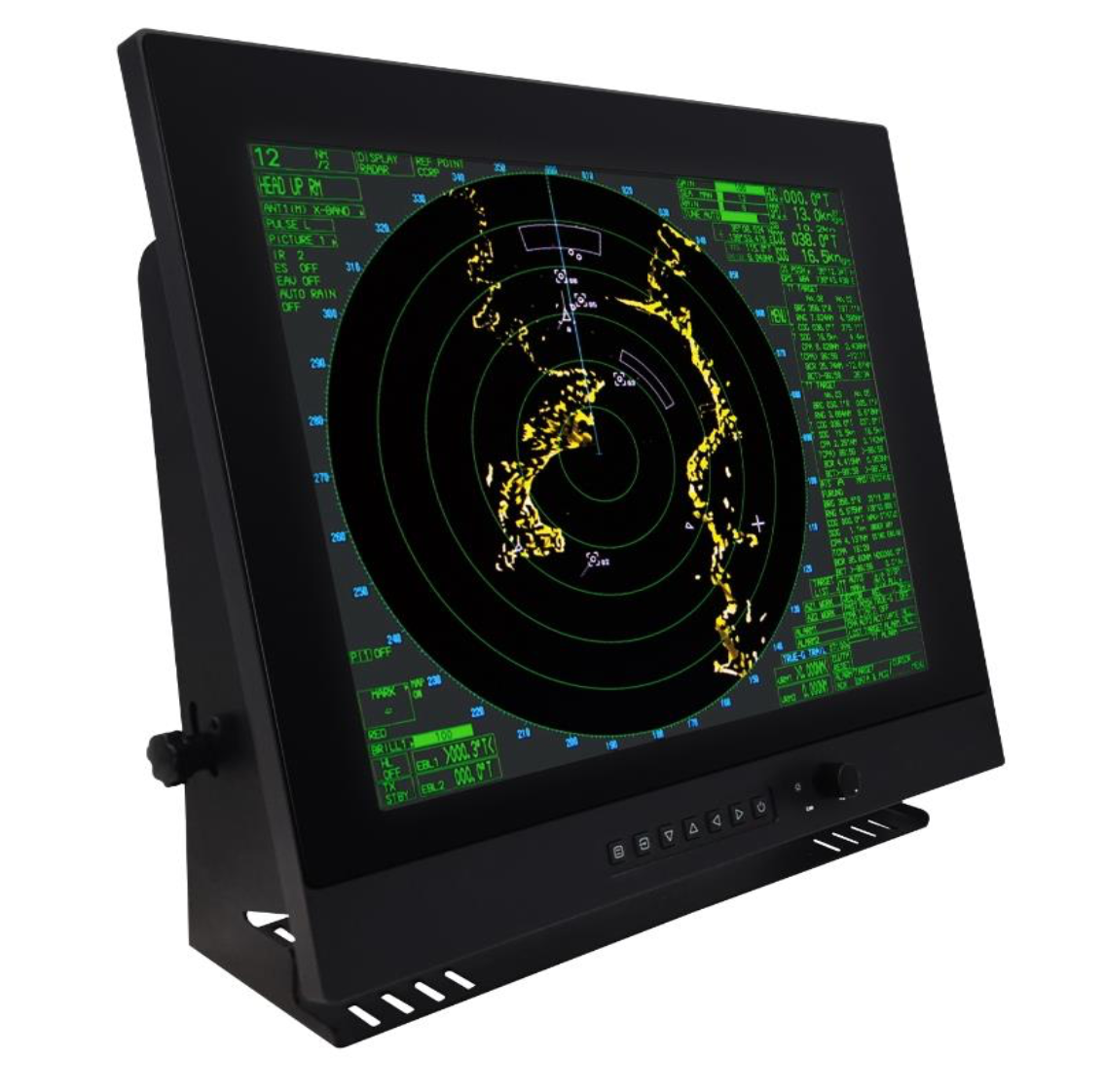

Sunlight Readable Industrial LCD Display

Our DIS standard format series, Maring Grade Highbright IP65 Rated on all sides, are designed for use throughout a wide range of rugged applications. At all stages of the production process, our displays are rigorously tested to ensure compliance with various industry standards, and are engineered to withstand the effects of continuous operation in harsh environments.

IP65 rated enclosure sealed

IP65 rated enclosure sealed - IP 65 rating for water and dust resistance

Maximum Resolution

1,920 x 1,080 pixels (Full HD)

Active Display Area

476.64 x 268.11 mm

Display Brightness

1,000cd/m2, 1,500 cd/m2

View Angle

89°/ 89°/ 89°/ 89°

I/O Signal Input

VGA, HDMI, CVBS, Option: DVI, USB port

Set Outline Dimension

542(w) x 360(H) x 60(D) mm

Weight

8.0kg

Power Inputs

Input: DC10V 38V 5A free voltage usage Option: AC 100/250V usage
